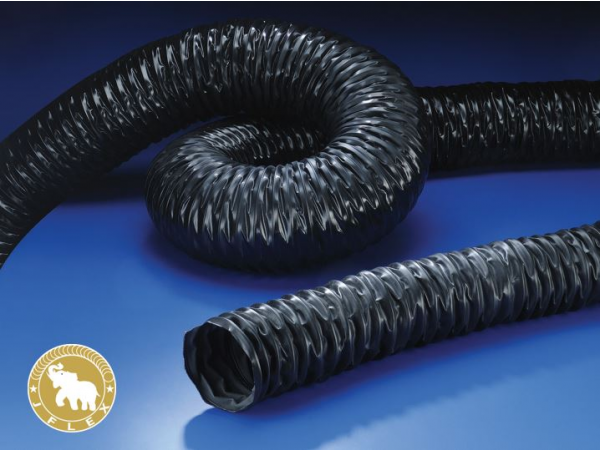

J 1-7 TPV FABRIC AIR HOSE

J 1-7 TPV FABRIC AIR HOSE
J 1-7 TPV FABRIC AIR HOSE
add to contact form
Product details

Applications:
  • for welding gas extraction
  • for air conditioning and ventilation technology
Construction:
  • spring steel wire integrated in wall
  • fabric-reinforced wall
  • wall thickness 0.5 mm approx.
Material:
  • wall: TPV coated fabric
  • spiral: spring steel wire
Stardard color:
  • black
Properties:
  • super-light model
  • highly flexible
  • compressible 4:1
  • excellent resistance to alkalis, acids, chemicals, UV, and ozone
  • flame-retardant according to UL94-HB
Temperature Range:
  • -20 °C approx. to +150 °C approx.
  • short time to +170 °C approx.
Specification:
  • ø 38 to ø 406 mm


Delivery Variants:
Customer-specific product marking, further colors, diameters and lengths available on request.




    1. I.D.mm
    2. O.D.mm
    3. Over pressurebar
    4. Vacuumbar
    5. Stock Lengthsm
    6. Order No.
    1. 51
    2. 61
    3. 0.240
    4. 0.145
    5. 10
    6. 1-7-051-000
    1. 63
    2. 73
    3. 0.195
    4. 0.115
    5. 10
    6. 1-7-063-000
    1. 76
    2. 86
    3. 0.160
    4. 0.080
    5. 10
    6. 1-7-076-000
    1. 102
    2. 112
    3. 0.120
    4. 0.050
    5. 10
    6. 1-7-102-000
    1. 127
    2. 137
    3. 0.100
    4. 0.035
    5. 10
    6. 1-7-127-000
    1. 152
    2. 162
    3. 0.080
    4. 0.035
    5. 10
    6. 1-7-152-000
    1. 178
    2. 187
    3. 0.070
    4. 0.020
    5. 10
    6. 1-7-178-000
    1. 203
    2. 213
    3. 0.060
    4. 0.020
    5. 10
    6. 1-7-203-000
    1. 254
    2. 264
    3. 0.050
    4. 0.010
    5. 10
    6. 1-7-254-000
    1. 305
    2. 315
    3. 0.040
    4. 0.005
    5. 10
    6. 1-7-305-000
    1. 356
    2. 366
    3. 0.035
    4. 0.005
    5. 10
    6. 1-7-356-000
    1. 406
    2. 416
    3. 0.030
    4. 0.003
    5. 10
    6. 1-7-406-000
    1. I.D.mm
    2. O.D.mm
    3. Over pressurebar
    4. Vacuumbar
      • 51
      • 61
      • 0.240
      • 0.145
      • Stock Lengths - m10
      • Order No. - 1-7-051-000
      • 63
      • 73
      • 0.195
      • 0.115
      • Stock Lengths - m10
      • Order No. - 1-7-063-000
      • 76
      • 86
      • 0.160
      • 0.080
      • Stock Lengths - m10
      • Order No. - 1-7-076-000
      • 102
      • 112
      • 0.120
      • 0.050
      • Stock Lengths - m10
      • Order No. - 1-7-102-000
      • 127
      • 137
      • 0.100
      • 0.035
      • Stock Lengths - m10
      • Order No. - 1-7-127-000
      • 152
      • 162
      • 0.080
      • 0.035
      • Stock Lengths - m10
      • Order No. - 1-7-152-000
      • 178
      • 187
      • 0.070
      • 0.020
      • Stock Lengths - m10
      • Order No. - 1-7-178-000
      • 203
      • 213
      • 0.060
      • 0.020
      • Stock Lengths - m10
      • Order No. - 1-7-203-000
      • 254
      • 264
      • 0.050
      • 0.010
      • Stock Lengths - m10
      • Order No. - 1-7-254-000
      • 305
      • 315
      • 0.040
      • 0.005
      • Stock Lengths - m10
      • Order No. - 1-7-305-000
      • 356
      • 366
      • 0.035
      • 0.005
      • Stock Lengths - m10
      • Order No. - 1-7-356-000
      • 406
      • 416
      • 0.030
      • 0.003
      • Stock Lengths - m10
      • Order No. - 1-7-406-000
